Wood shredder
- 【Production capacity】： 0.6-8t/h
- 【Discharge particle size】： The size is determined by the number of knife claws
- 【Power】： 15kw-160kw
- 【Applicable materials】：Wood, wood scraps, wooden pallets, tree branches...
【Keyword】：
- Wood shredder
- wood scrap shredder
- wooden pallet crusher
- branch crusher
Product Introduction

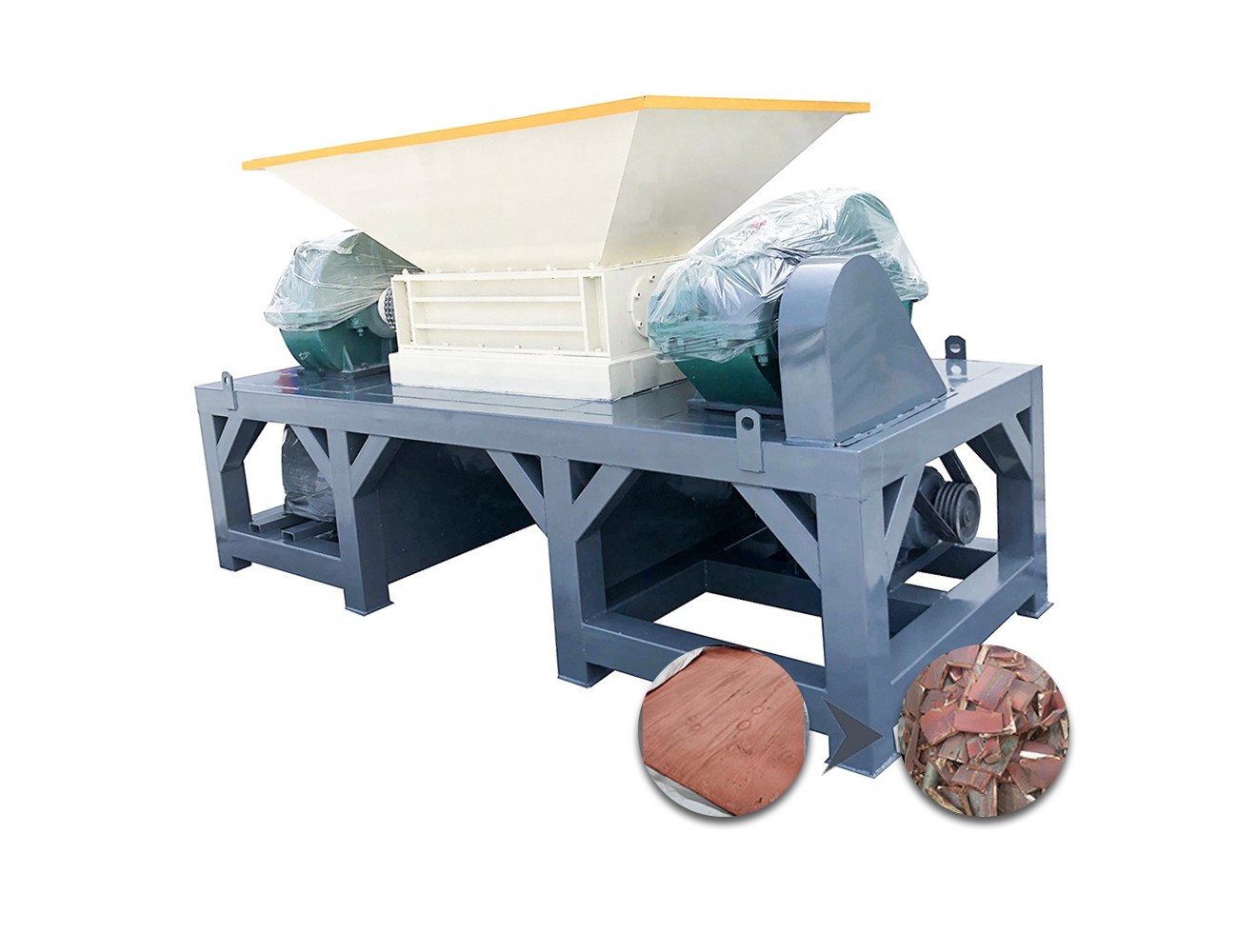

A wood shredder is a shearing crusher mainly used for professional crushing of miscellaneous wood, scraps, tree technology, and waste wood. The main raw materials for cutting are miscellaneous wood, scraps, wood chips, and waste wood, which can also be used to cut irregular wood and furniture processing residues. The advanced technology of this product adopts a closed shear structure, and the controlled feeding method determines the uniformity of the length of the wood chips. This product has the characteristics of reasonable structure, high cutting material quality, large output, and low power. It is the preferred equipment for cutting miscellaneous wood, corner materials, tree techniques, and waste wood.
A wood shredder is a machine that shreds whole wood, wooden blocks, old furniture and other wooden materials into small pieces through cutting and shredding. It has the advantages of strong processing capacity and high output. The device can also be equipped with a wood crusher and a sawdust crusher to crush shredded wood blocks into sawdust. Widely used in wood, wood scraps, wooden pallets, solid wood, tree branches, paint buckets, discarded household appliance shells (plastic shells, metal shells), and other large volume waste.
Performance characteristics:
1: Thick and powerful cutting tools, with high crushing power. All cutting tools are made of alloy steel casting, which is sturdy and has a long service life.
2: The frame plate is thick and can withstand high torque, making it very sturdy.
3: Adopting microcomputer (PLC) automatic control, with functions of start, stop, reverse and overload automatic reverse control.
4: The wood shredder equipment has the characteristics of low speed, high torque, low noise, and dust that can meet environmental standards.
5: Easy to adjust, low maintenance cost, economical and durable.
6: The thickness of the cutting tool and the number of claws can be changed according to different materials.
Product advantages
The maximum feed size can reach 2800 millimeters, and the discharge particle size can be controlled within the range of 3-30 millimeters according to demand
can efficiently process various solid wastes such as metal, plastic, rubber, wood, etc
able to meet the industrial processing needs of different scales, crush materials, reduce volume, and lower subsequent transportation and processing costs
The hydraulic system can adjust the tool spacing to meet the crushing requirements of materials with different hardness or characteristics
working principle
The shredder independently drives two main shafts to rotate forward and backward through dual motors. The moving blades on the main shafts interlock to form shear, the cutting edge of the moving blade forms shear with the cylindrical surface of the blade sleeve, and the torque and speed difference of the main shaft form tearing to achieve the crushing effect. Due to the interlocking of the moving blades, automatic feeding function can be achieved. The unique blade shaft structure ensures that there will be no entanglement or equipment jamming during low-speed and high torque production processes, thereby improving production efficiency. The core working principle of the shredder is based on the interaction between the dual axis or single axis rotating blade rollers. The surface of the knife roller is equipped with high-strength cutting tools, which are driven by a low-speed high torque motor to continuously shear the material. The arrangement of cutting tools (such as staggered or spiral) directly affects the crushing effect, while the spacing between the cutting rollers determines the particle size of the discharged material. The main body of the equipment adopts a metal frame structure, equipped with wear-resistant lining plates and dust-proof sealing devices to adapt to high-intensity working environments. Some models also integrate a hydraulic drive system, which can automatically adjust the inlet pressure to avoid material jamming problems.
Surgical parameters
|
型号
|
刀具规格
|
减速机
|
功率
|
|---|---|---|---|
|
500型
|
220×20
|
ZQ400
|
22kw
|
|
600型
|
300×30
|
ZQD650
|
60kw
|
|
800型
|
400×40
|
ZQD650
|
74kw
|
|
1000型
|
400×40
|
ZQD750
|
90kw
|
|
1200型
|
580×53
|
ZSSH315
|
110kw
|
|
1500型
|
600×60
|
ZSSH400
|
180kw
|
|
2000型
|
800×80
|
ZSSH500
|
260kw
|
