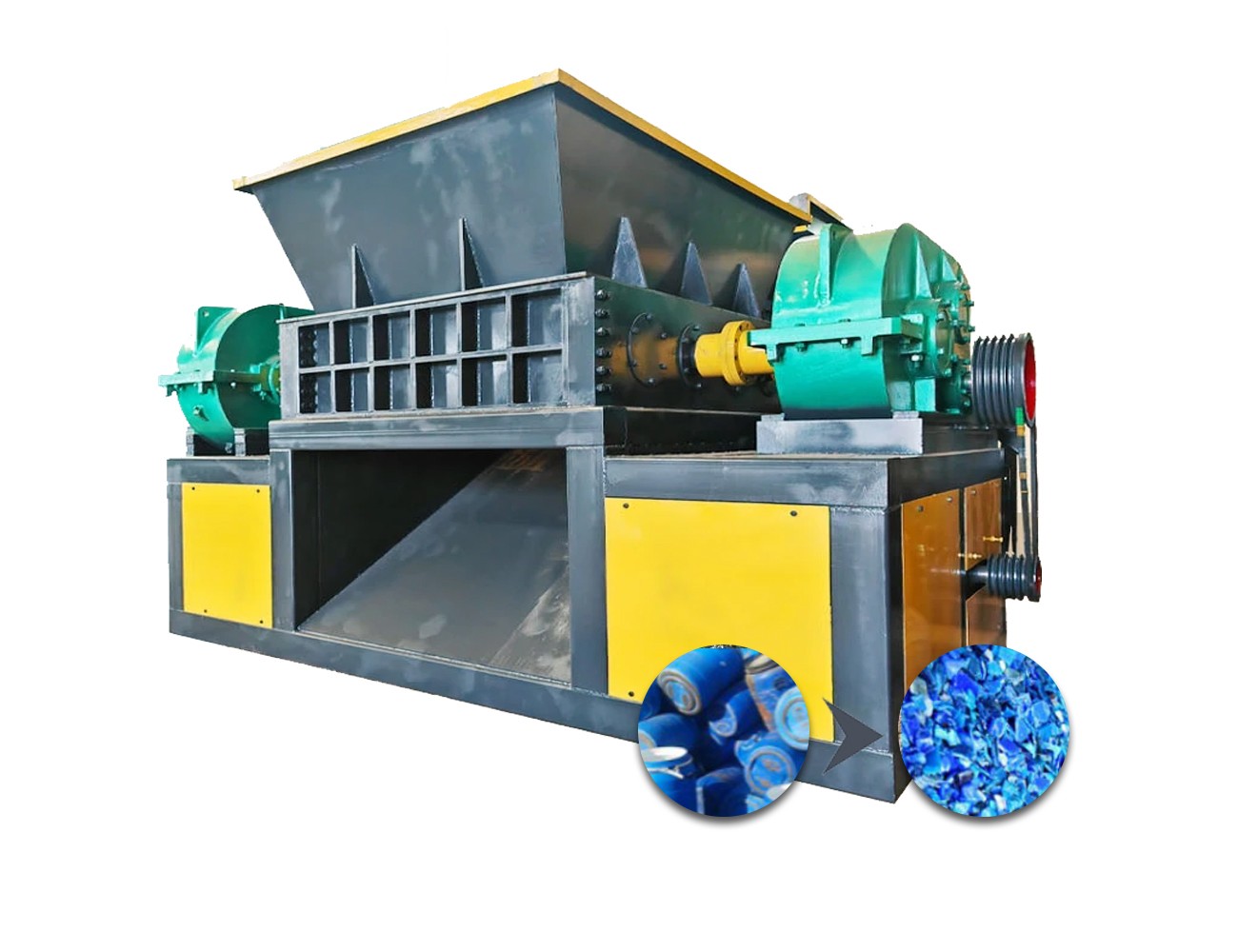

Plastic shredder
- 【Production capacity】： 0.6-8t/h
- 【Discharge particle size】： The size is determined by the number of knife claws
- 【Power】： 15kw-160kw
- 【Applicable materials】：Plastic film, woven bags, ton bags, plastic baskets, plastic blocks...
【Keyword】：
- Plastic film crushing equipment
- woven bag crushing equipment
- plastic basket crushing processing equipment
- plastic block crushing processing equipment
Product Introduction
A plastic shredder is a specialized mechanical equipment used for processing plastic waste. It uses a specific shredding mechanism to break large or rolled plastic materials into smaller fragments or particles for subsequent recycling, reuse, or further processing.
From a technical perspective, plastic shredders typically adopt a dual axis or single axis rotating blade design, utilizing the shear and tear forces between the blades to crush materials. Double axis shredder, due to its two relatively rotating blade shafts, can more effectively handle harder or larger plastic materials, such as plastic buckets, plastic pipes, etc. Single axis shredders are more suitable for processing softer or rolled plastic films, woven bags, etc.
In terms of application scenarios, plastic shredders are widely used in waste plastic recycling stations, plastic processing plants, garbage disposal centers, and other places. It can not only handle various types of plastic waste, such as polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), etc., but also some composite plastic materials mixed with other materials, such as mixtures of plastic and metal, mixtures of plastic and fabric, etc.
Before operating the equipment, it is necessary to conduct a detailed inspection of all parts to ensure that they are in good working condition. After confirming that there are no errors, the power can be turned on and the equipment can be started according to the established process. When the equipment is running, the operator needs to continuously monitor its operating status. If any abnormalities are detected, prompt measures should be taken.
During the equipment maintenance process, it is necessary to regularly check the wear condition of the cutting tools. Once the wear is severe, it needs to be replaced in a timely manner to ensure the accuracy of the machining. In addition, it is necessary to lubricate the equipment to ensure that all operating components receive sufficient lubrication, thereby reducing wear and tear. At the same time, it is necessary to regularly clean the plastic debris inside the equipment to avoid its accumulation and affect the normal operation of the equipment, ensuring that the equipment can continue to maintain a good working condition, operate stably and efficiently.
Product advantages
The maximum feed size can reach 2800 millimeters, and the discharge particle size can be controlled within the range of 3-30 millimeters according to demand
can efficiently process various solid wastes such as metal, plastic, rubber, wood, etc
able to meet the industrial processing needs of different scales, crush materials, reduce volume, and lower subsequent transportation and processing costs
The hydraulic system can adjust the tool spacing to meet the crushing requirements of materials with different hardness or characteristics
working principle
The shredder independently drives two main shafts to rotate forward and backward through dual motors. The moving blades on the main shafts interlock to form shear, the cutting edge of the moving blade forms shear with the cylindrical surface of the blade sleeve, and the torque and speed difference of the main shaft form tearing to achieve the crushing effect. Due to the interlocking of the moving blades, automatic feeding function can be achieved. The unique blade shaft structure ensures that there will be no entanglement or equipment jamming during low-speed and high torque production processes, thereby improving production efficiency. The core working principle of the shredder is based on the interaction between the dual axis or single axis rotating blade rollers. The surface of the knife roller is equipped with high-strength cutting tools, which are driven by a low-speed high torque motor to continuously shear the material. The arrangement of cutting tools (such as staggered or spiral) directly affects the crushing effect, while the spacing between the cutting rollers determines the particle size of the discharged material. The main body of the equipment adopts a metal frame structure, equipped with wear-resistant lining plates and dust-proof sealing devices to adapt to high-intensity working environments. Some models also integrate a hydraulic drive system, which can automatically adjust the inlet pressure to avoid material jamming problems.
Surgical parameters
|
型号
|
刀具规格
|
减速机
|
功率
|
|---|---|---|---|
|
500型
|
220×20
|
ZQ400
|
22kw
|
|
600型
|
300×30
|
ZQD650
|
60kw
|
|
800型
|
400×40
|
ZQD650
|
74kw
|
|
1000型
|
400×40
|
ZQD750
|
90kw
|
|
1200型
|
580×53
|
ZSSH315
|
110kw
|
|
1500型
|
600×60
|
ZSSH400
|
180kw
|
|
2000型
|
800×80
|
ZSSH500
|
260kw
|
