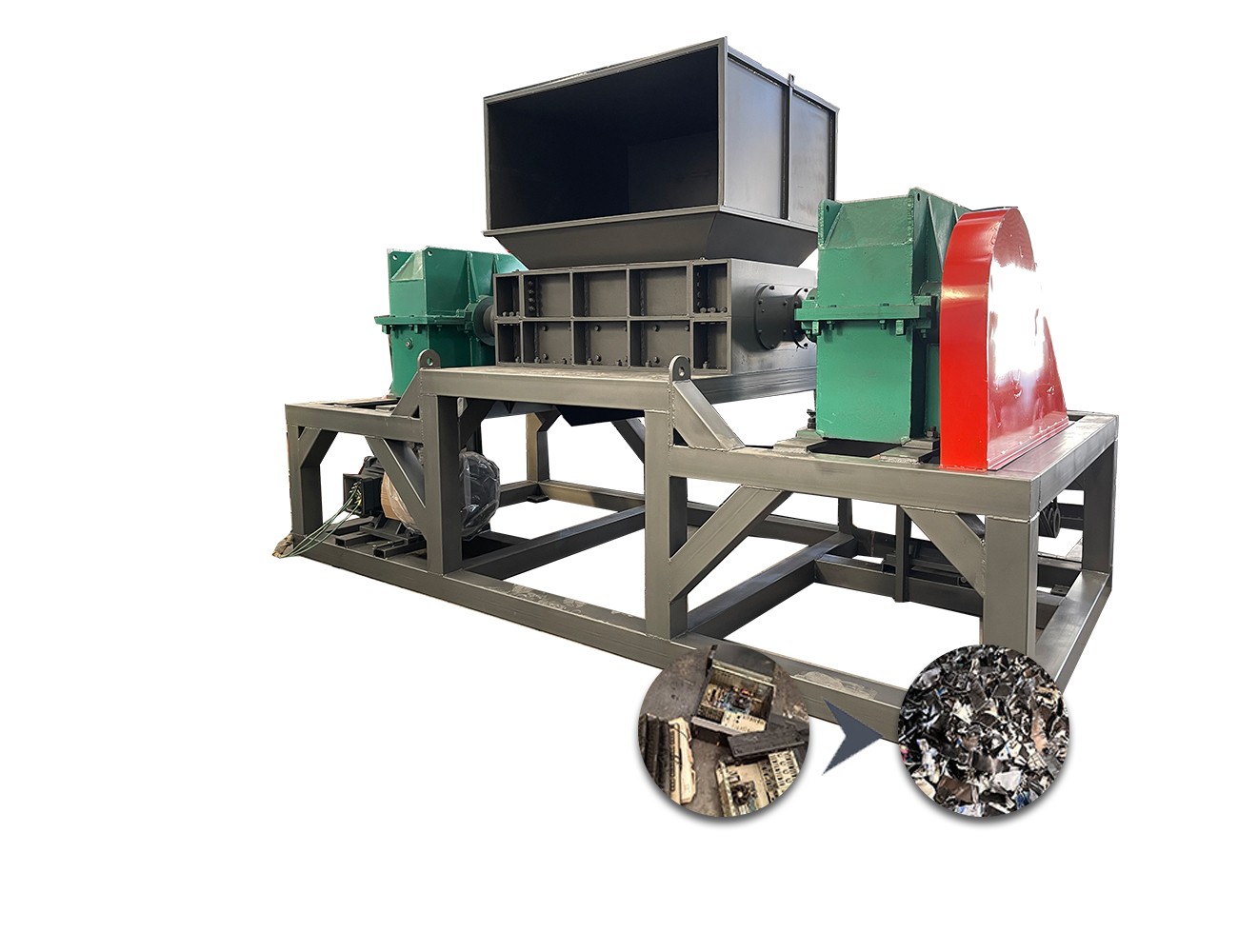

Garbage shredder
- 【Production capacity】： 0.6-8t/h
- 【Discharge particle size】： The size is determined by the number of knife claws
- 【Power】： 15kw-160kw
- 【Applicable materials】：Household waste, construction waste, discarded furniture, and kitchen waste...
【Keyword】：
- Household garbage shredder
- Construction waste shredder
- Large garbage shredder
Product Introduction
With the acceleration of urbanization and the upgrading of residents' consumption, the annual production of large waste such as waste furniture, mattresses, and household appliance shells continues to rise. Their large volume, difficult disassembly, and high transportation costs have become the core pain points of urban solid waste management. In response to market demand, efficient and environmentally friendly large-scale garbage shredders have become a necessity in the industry, providing key support for the resource utilization of solid waste.
The solid waste shredder is specially developed for the waste disposal industry, mainly used to crush various solid wastes such as household waste, urban waste, industrial waste, hazardous waste, medical waste, electronic waste, etc., in order to reduce their volume and facilitate subsequent disposal. This device is widely used in the waste disposal industry. The solid waste shredder has the characteristics of low speed, high torque, and low noise. It adopts a PLC control system and can be automatically controlled. It is equipped with start, stop, reverse, and overload automatic reverse control functions.
Garbage shredder is an industrial equipment that processes solid waste through shearing, tearing, and squeezing, mainly used to reduce garbage volume, lower transportation costs, and promote resource recycling. Its core types include dual axis, four axis, and coarse garbage shredders, suitable for scenarios such as household waste, construction waste, and metal waste.
Product advantages
The maximum feed size can reach 2800 millimeters, and the discharge particle size can be controlled within the range of 3-30 millimeters according to demand
can efficiently process various solid wastes such as metal, plastic, rubber, wood, etc
able to meet the industrial processing needs of different scales, crush materials, reduce volume, and lower subsequent transportation and processing costs
The hydraulic system can adjust the tool spacing to meet the crushing requirements of materials with different hardness or characteristics
working principle
The shredder independently drives two main shafts to rotate forward and backward through dual motors. The moving blades on the main shafts interlock to form shear, the cutting edge of the moving blade forms shear with the cylindrical surface of the blade sleeve, and the torque and speed difference of the main shaft form tearing to achieve the crushing effect. Due to the interlocking of the moving blades, automatic feeding function can be achieved. The unique blade shaft structure ensures that there will be no entanglement or equipment jamming during low-speed and high torque production processes, thereby improving production efficiency. The core working principle of the shredder is based on the interaction between the dual axis or single axis rotating blade rollers. The surface of the knife roller is equipped with high-strength cutting tools, which are driven by a low-speed high torque motor to continuously shear the material. The arrangement of cutting tools (such as staggered or spiral) directly affects the crushing effect, while the spacing between the cutting rollers determines the particle size of the discharged material. The main body of the equipment adopts a metal frame structure, equipped with wear-resistant lining plates and dust-proof sealing devices to adapt to high-intensity working environments. Some models also integrate a hydraulic drive system, which can automatically adjust the inlet pressure to avoid material jamming problems.
Surgical parameters
|
型号
|
刀具规格
|
减速机
|
功率
|
|---|---|---|---|
|
500型
|
220×20
|
ZQ400
|
22kw
|
|
600型
|
300×30
|
ZQD650
|
60kw
|
|
800型
|
400×40
|
ZQD650
|
74kw
|
|
1000型
|
400×40
|
ZQD750
|
90kw
|
|
1200型
|
580×53
|
ZSSH315
|
110kw
|
|
1500型
|
600×60
|
ZSSH400
|
180kw
|
|
2000型
|
800×80
|
ZSSH500
|
260kw
|
